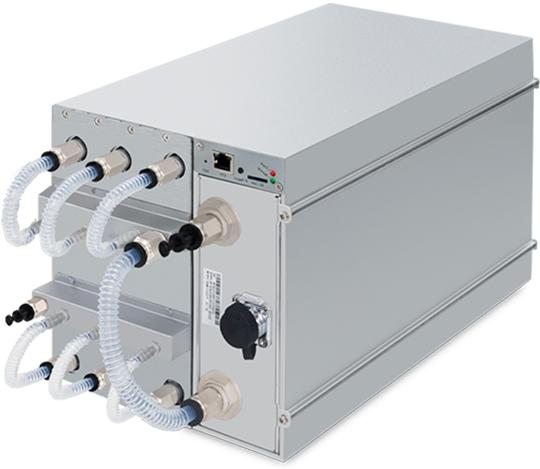

SPOT Bitcoin Miner S19 XP Hyd.

Function BTC/BCH/BSV  SHA256  Hydro-cooling Miner
Specifications 257T 5345.6W 20.8J/T
23 $/T
5,911 $/Unit
After-coupon Price = Original Price x 70%
After Coupon
16.1 $/T
4,138 $/Unit
Shipping Date
SPOT Shipping in 10 working days after fully paid
Payment Method

| Specifications

Product Glance

Model  S19 XP Hyd.
Algorithm | Cryptocurrency SHA256 | BTC/BCH/BSV
Hashrate, TH/s(1-1) 257
Power on wall @35°C(1-2), Watt(1-1) 5345.6
Power efficiency on wall @35°C(1-2), J/TH(1-1) 20.8

Detailed Characteristics

Power supply
Power supply AC input voltage, Volt(2-1) 380~415
Power supply AC input frequency range, Hz 50~60
Power supply AC input current, Amp(2-2) 12
Hardware configuration
Networking connection mode RJ45 Ethernet 10/100M
Miner size (length*width*height, w/o package),mm 410*170*209
Miner size (length*width*height, with package),mm 570*316*430
Net weight, kg 12.8
Gross weight, kg 14.1
Environment requirements
Inlet water temperature, °C(2-3)


Water flow, L/min 8.0~10.0
Water pressure bar ≤3.5
Working fluid(2-4) Antifreeze/ Deionized water/ Pure water
Liquid PH 8.5~9.5
Diameter of water pipe connector, mm DN10
Storage temperature, °C -20~70
Operation humidity(non-condensing), RH 10%~90%


(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.

(1-2) Inlet water temperature.

(2-1) Caution: Wrong input voltage may cause server damaged.

(2-2) Three-phase AC input, 12A max.

(2-3) If the inlet water temperature is lower than 20 °C, the miner cannot be started.

(2-4) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.


| Purchasing Guidelines

1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.

2. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It's highly recommended to be aware of local customs clearance policies and prepare all customs documentation ahead of time to avoid delays or unexpected costs.

3. Click here to download Certificates of Conformity and find additional information on customs clearance for BITMAIN products.

| Warranty

1. Kindly note that customer service for the product shall not be available if the miner is operated without the water-cooling container due to operational issues.

2. A 365-day warranty period is provided starting from the shipping date. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.

3. The warranty only applies to the original purchaser who purchased the machine directly from BITMAIN. Once the miner is resold, warranty coverage becomes the responsibility of the re-seller.

4. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN's prior consent, BITMAIN will not be liable for any damage arising therefrom.

5. Click here for a complete list of the Terms & Conditions that apply to all orders.
